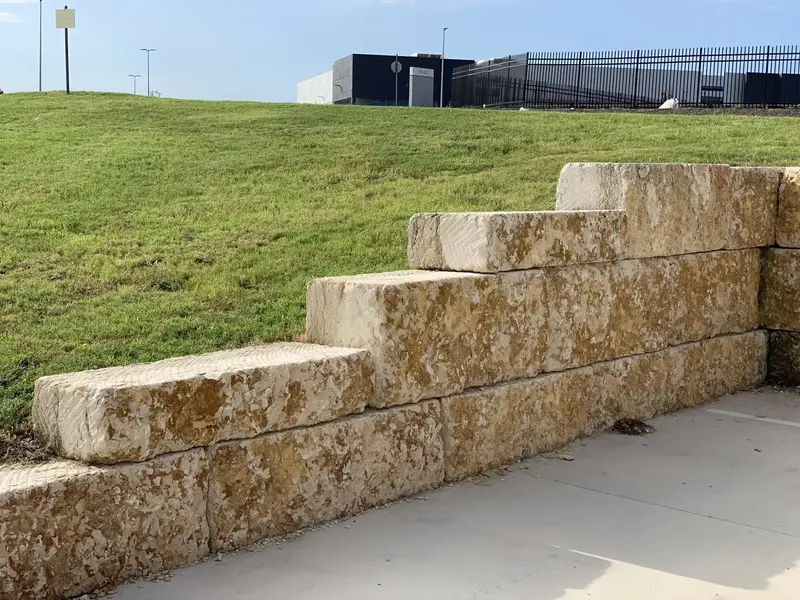

Block Wall

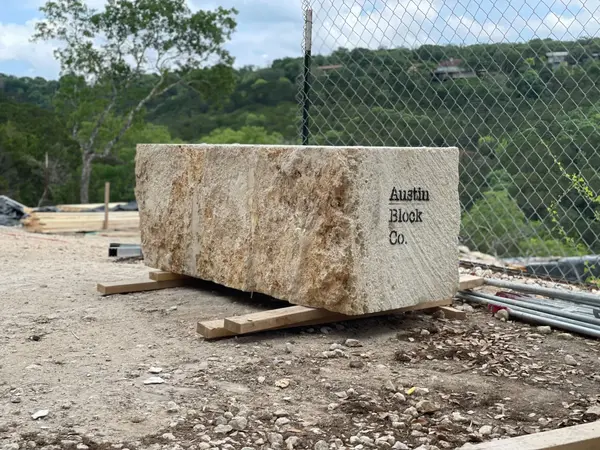

 A block wall is our most popular, and most often recommended type of retaining wall. The limestone blocks can be installed in a number of ways, depending on your project’s specific needs and limitations. Block walls are perfect for any retaining wall two feet or higher. The limestone is available in multiple different sizes and colors to give your property an elegant look with timeless protection. Block walls can also be assembled with concrete blocks for a more cost-effective design.

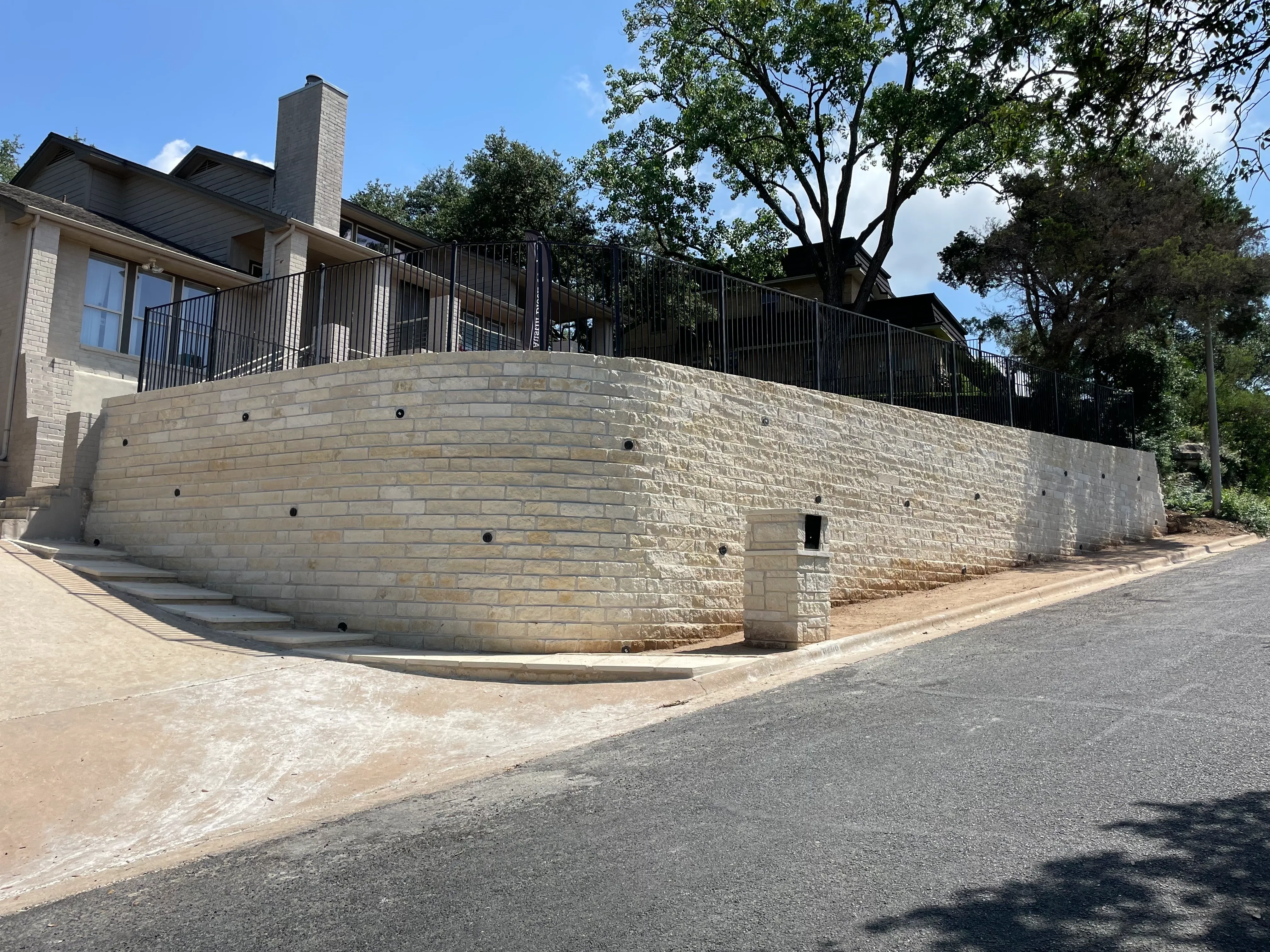

Chopped Stone Wall

Our mortared mixed-stone walls are an excellent choice for smaller walls and garden walls, as well as anyone who is going after a certain aesthetic. Typically, we use chopped limestone or flagstone to complete these walls. The stone comes in a variety of colors and shapes. We use a white or grey masonry mortar to fill the gaps between the stones, because of this, it is important to add a drain pipe behind the wall to allow for water passage.

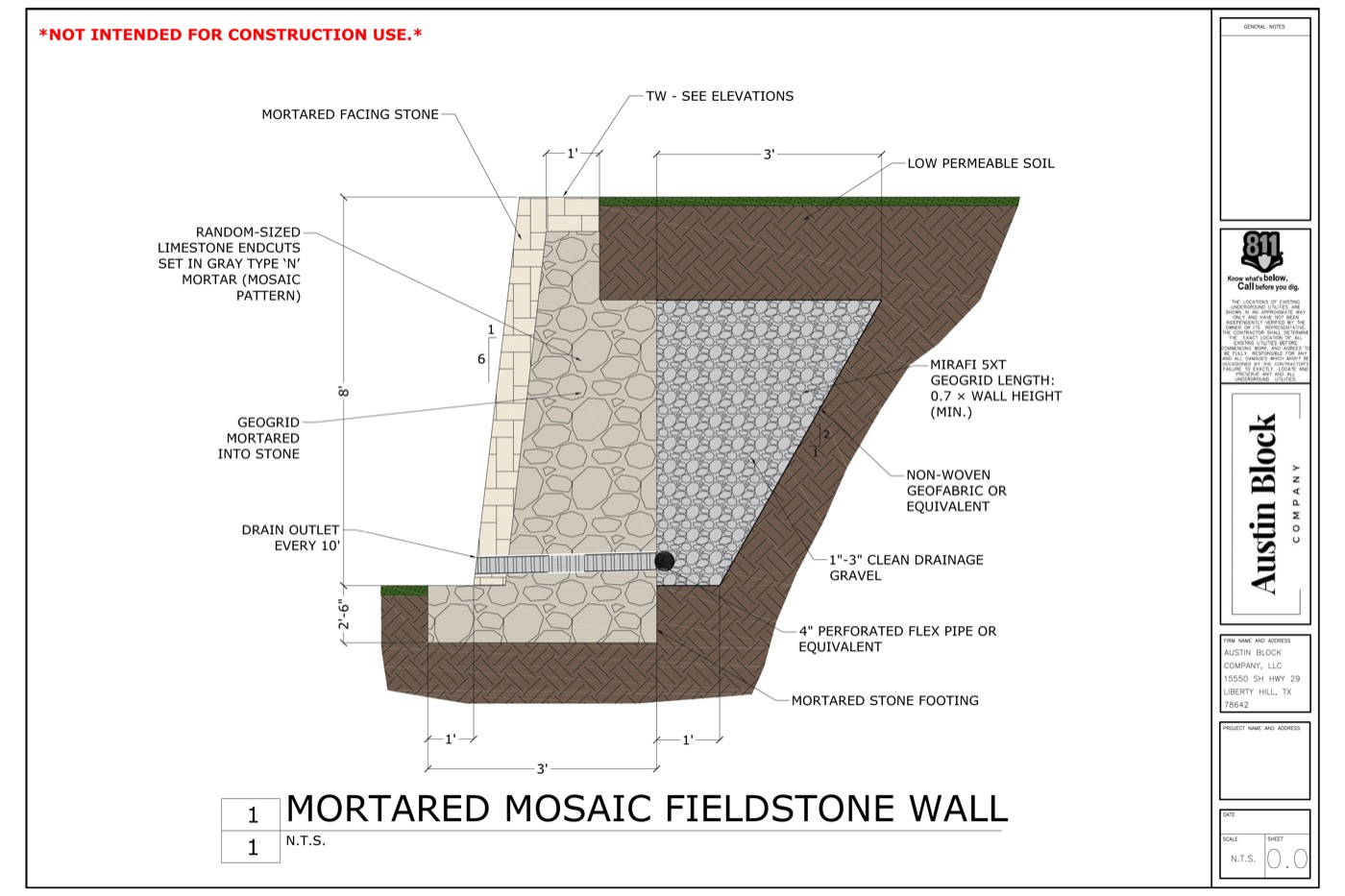

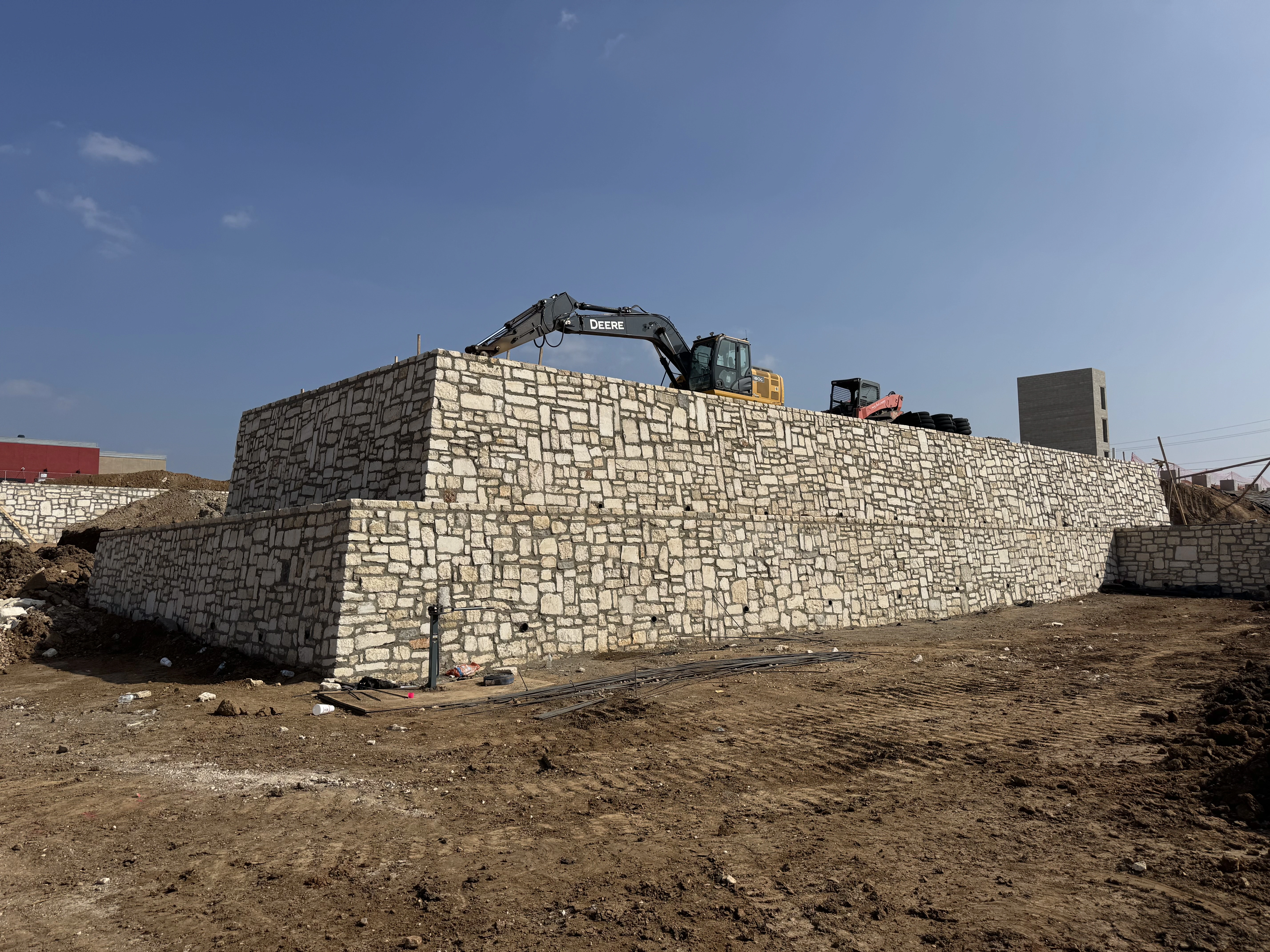

Field Stone Wall

Field stone walls are made up of natural limestone pieces. The gaps between the stone are then filled with white or grey mortar. This wall type can often be more cost effective, and creates a unique look that is sure to get your attention.

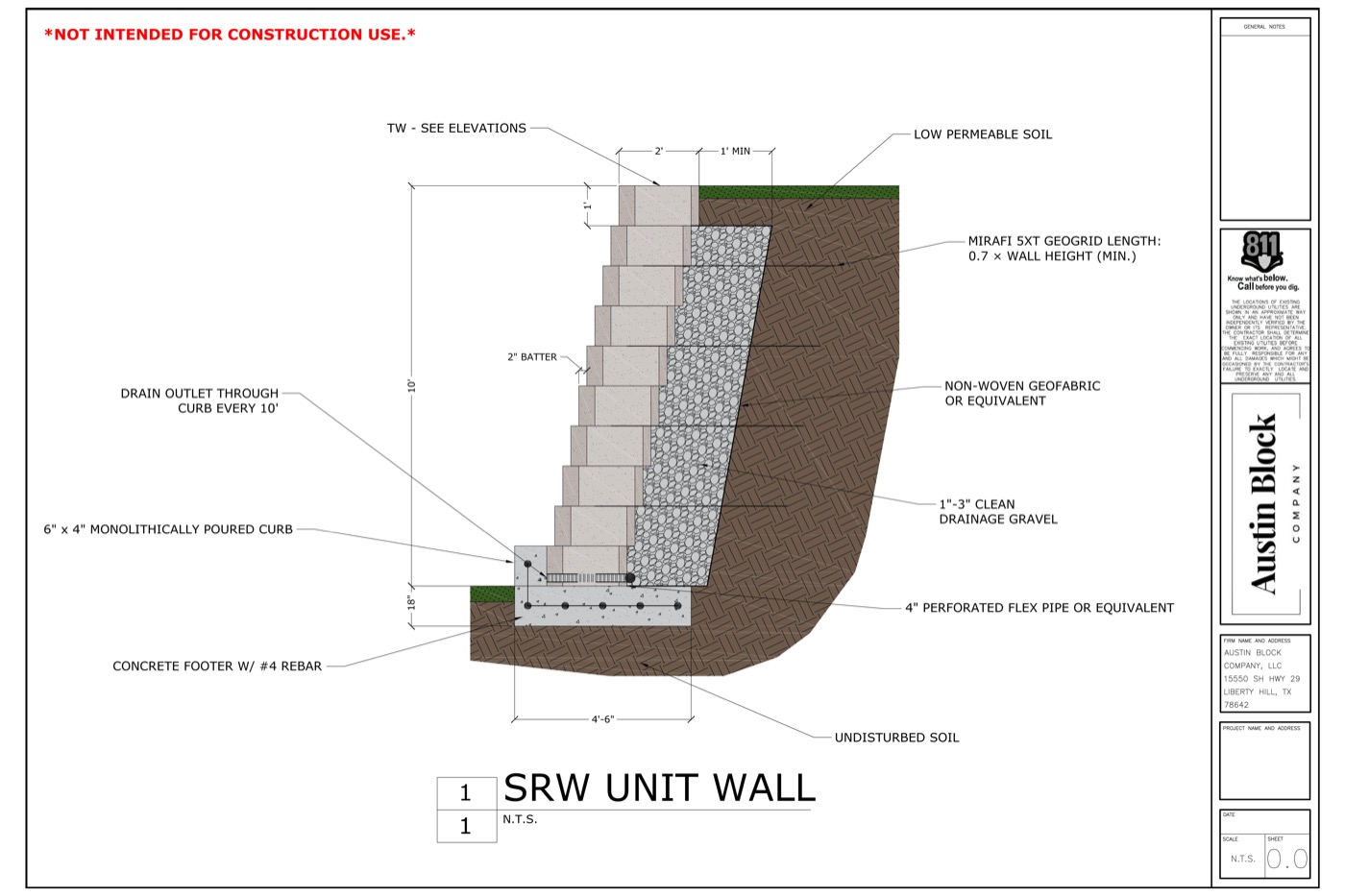

Segmantal Retaining Wall

Segmental retaining walls are the latest innovation in modular retaining wall design. These pre-cast concrete blocks feature a rough split-face and can be easily set in place. The set-back guide line allows for precise placement on site, while the hollow blocks are light and easy to handle. This makes segmental retaining walls the ideal DIY option for your next retaining wall project.

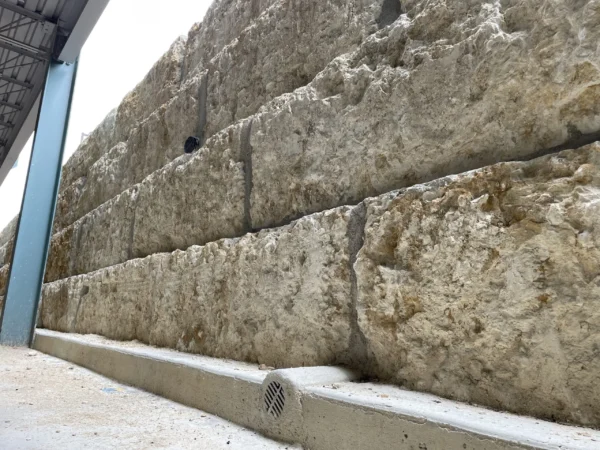

Concrete Footing

Concrete footing would usually be used where soil conditions are poor or when exceeding the maximum unreinforced wall heights with an engineered design. First, we excavate a 6″- 8″ deep trench to lay the foundation in. Once the soil has been cleared out, we install the stakes and planks to pour the concrete, as well as the rebar to support our footing. Lastly, we pour the concrete, allow it to dry, and begin constructing the wall.

Earth-In Footing

All unusable spoils should be removed. Once all of the unsuitable materials have been removed, the bottom of the footing should be sufficiently compacted. Once the footing subgrade has been compacted, a select fill should be installed between 6″- 8″ lifts. The depth of your base layer is influenced by the soil type and application. The base layer should be leveled and compacted firmly. This should help safeguard against shifting and/or settling.

Block Pinning

Our Block Pinning option, gives your retaining wall extra durability and stability. Rebar pins are installed, linking the blocks together vertically. This helps to prevent shifting, sliding, and/or settling.

Mortar

Mortar can be used to secure stone to help prevent shifting, settling, or sliding over time. We use a white or grey masonry mortar to fill the gaps between the stones, because of this, it is important to add a drain pipe behind the wall to allow for water passage.

Dry Stack

A dry stack wall is a type of retaining wall that does not require mortar, geogrid, pinning or reinforcement. Instead, the stones are placed onto one another directly. Gravel and smaller rocks are used to fill in gaps between the stones, but excess space that is left allows for water to drain out the face of the wall naturally.

Geogrid

Geo-Grid material is added between each layer to anchor the blocks laterally to the fill material. The geo-grid is typically secured using mortar or pinning in order to insure proper placement of the geogrid lasts and can widthstand any shifting that would otherwise cause wall failure.

Drain Outlets

To help prevent water build-up behind the wall, we typically install drain pipe to create an outlet for the water behind the wall to exit. Water built up behind the wall will create an outward pressure on the back of the wall and can cause wall failure. For this reason it is important to plan for a way to allow the water to drain from behind the wall.

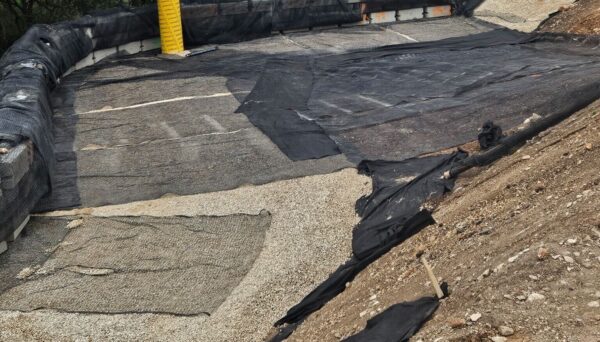

Drainage Rock & Fabric

To help protect against drainage issues, we suggest using washed gravel behind our block walls. Once the gravel has been installed, we will install our heavy-duty Geo-fabric to help keep fill material separate from the gravel.

Backfill

After all the blocks are stacked and the filter rocks and fabric are in place, there is back fill dirt that is filled in on top of the filter rocks and fabric and behind the wall. In some cases there are drains and piping place within and behind the wall for drainage purposes.
